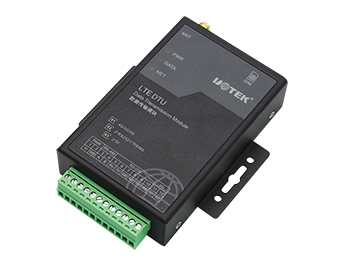

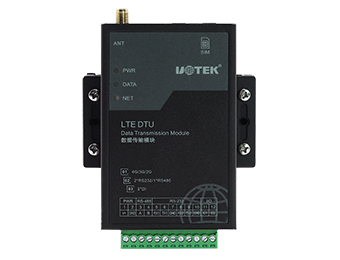

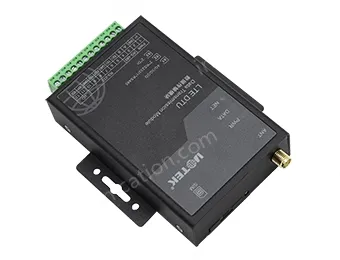

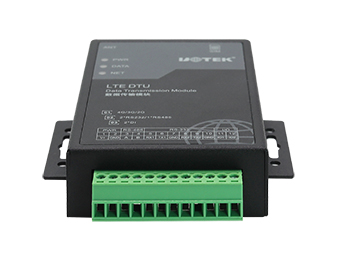

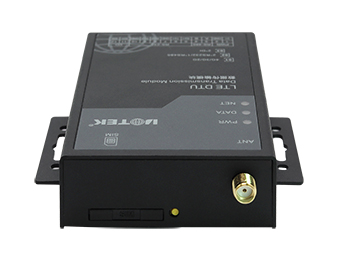

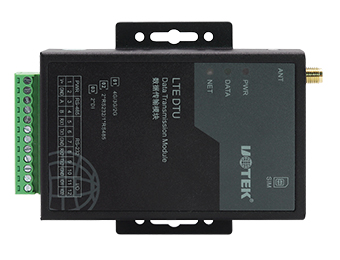

D9701 series DTU is an industrial-grade wireless data transmission module, with wireless cellular network as the bearer network, providing industrial users with wireless data transmission channels over TCP/IP, functionally realizing wireless data communication between field serial devices and the central control system, enabling remote data acquisition and control of field devices. It is widely used in the fields of intelligent power, environmental monitoring, intelligent water conservancy, self-service terminal, weather monitoring, intelligent transportation, logistics information, industrial control, etc.
D9701 series DTU, adopts high-performance industrial-grade 32-bit communication processor, and equipped with embedded real-time operating system, and provides industrial serial interface RS232 and RS485 to connect serial devices and realize data transparent transmission function.
D9701 series DTU, supports PC configuration tools, AT command configuration, remote configuration of UOTEK Device Manager Cloud device management cloud platform and TCP/IP realizes a variety of configuration and management methods such as flexible and efficient on-site or remote configuration, reduces the difficulty of post-maintenance, significantly improves construction efficiency, reduces the cost of system operation, and realizes customers to truly experience Wireless communication is convenient and fast.
● Industrial-grade chip design, suitable for the harsh working environment of industrial sites
● Protection level up to IP30, safety isolation of shell and system, suitable for industrial control field application
●Low power consumption, support +6~35VDC wide voltage power supply, suitable for various field power supply methods
● Compliant with DL/T721-2013 power distribution automation remote terminal standard
● Embedded watchdog technology, self-recovery from failure, ensure stable operation of equipment
● Support ICMP detection, PPP layer heartbeat, TCP Keepalive and application layer heartbeat to detect dead connection mechanism
● Multi-level link detection and anti-drop mechanism to ensure the device is permanently online
● Support industrial serial interface, RS232 and RS485
● Support configuration file import and export function
● Support local and remote firmware upgrade, saving manpower and material resources
D9701 Series | ||
| R9701-FS | |
Specification name | Hardware specification | |
CPU | Industrial grade 32-bit | |
4G/LTE | Cat.4 FDD-LTE:B1/B3/B5/B8 TDD-LTE:B34/B38/B39/B40/B41 | |
3G | WCDMA:B1/B5/B8 TD-SCDMA:B34/B39 CDMA1X CDMA EVDO:800M | |
GSM | EDGE/GPRS/GSM:1800MHz/900MHz | |
SIM/UIM interface | Support 1.8V/3V SIM/UIM Built-in 15KV ESD protection 1 Drawer cardholder | |
Industrial serial interface RS-232/RS-485 | Serial port 1: RS232/RS485 Serial port 2: RS232 (optional RS485 support) Data bits: 7 bits, 8 bits Stop bit: 1 bit, 2 bits Parity: no parity, odd parity, even parity Baud rate: 1200, 2400, 4800, 9600, 14400, 19200, 38400, 56000, 115200bps 115200bps Built-in 15KV ESD protection | |

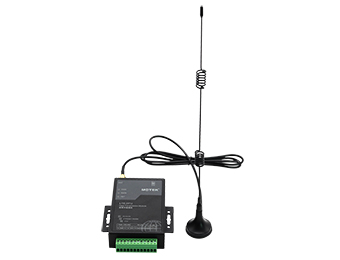

Antenna interface | 1 external antenna connectors, 50 Ohm characteristic impedance, SMA female connector | |
Indicator light | Power indicator PWR, Data indicator DATA, Network indicator NET | |
Power interface | Adopt terminal power supply, built-in anti-reverse connection protection, to avoid positive and negative connection error damage equipment | |
Standard power supply | DC12V/1A, supports overload protection, reverse connection protection | |
Scope of electricity supply | +6~35VDC (DC Model) | |
Product size | LxWxH=91.6x59x22mm(without antenna and mountings) | |
Idle current | 35mA@12VDC | |
Average current | 70mA@12VDC | |
Peak current | 140mA@12VDC | |
Max. power consumption | 1.6W | |
Ambient temperature and humidity | Storage temperature: -40~75°C Operating temperature: -30~75°C Relative humidity: 5 ~ 95% (no condensing) | |
Weight | 190 g | |
Housing | Metal housing design, protection level up to IP30 | |

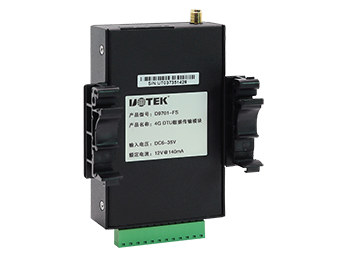

Mounting method | Wall-mounted or Rail-mounted (optional) | |
Specification name | Software specification | |
Network Protocol | Support MQTT protocol, can be quickly connected to Ali cloud platform Support transparent data transmission, embedded standard TCP/IP and UDP/IP protocol stack Support custom TCP/UDP login and heartbeat packets | |
Multi-Center | Support dual data center backup transmission and multi-data center synchronous transmission, 1-4 centers | |
Link detection | Support ICMP detection, PPP layer heartbeat, TCP Keepalive and application layer heartbeat to detect dead links Multi-level link detection and anti-drop mechanism to ensure that the device is always online | |
Built-in watchdog | Support device failure self-recovery to ensure stable operation of the device | |
Network Security | Support administrative user hierarchy: administrator, maintainer | |
Management and maintenance | Support configuration tool local serial configuration Support for remote TCP configuration Support configuration file import and export Support local and remote firmware upgrade, saving manpower and material resources Support UOTEK Device Manager Cloud device management cloud platform, batch operation, centralized management | |
