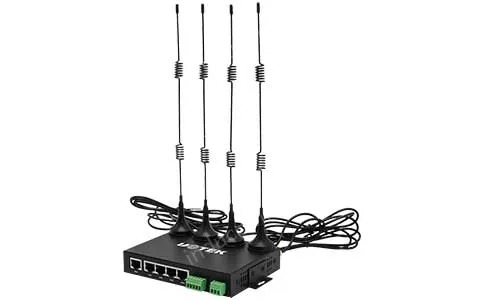

R9607 Series

R9607-FS

Specification name

Hardware specification

CPU

Industrial grade 32-bit

DRAM capacity

64MB (expandable up to 128MB)

FLASH capacity

16MB (expandable up to 32MB)

Operating system

Deep customization based on Linux

4G

FDD-LTE:B1/B3/B5/B8

TDD-LTE:B34/B38/B39/B40/B41

3G

WCDMA:B1/B5/B8

TD-SCDMA:B34/B39

EVDO:800MHz

CDMA2000

GSM

EDGE/GPRS/GSM:1800MHz/900MHz

SIM/UIM interface

Support 1.8V/3V SIM/UIM

Built-in 15KV ESD protection

2 Drawer cardholder

Industrial serial interface

1 RS232&RS485（RS232optional RS485 optional）

Antenna interface

4 external antenna connectors, 50 Ohm characteristic impedance, SMA female connector (2 4G antennas, 2 Wi-Fi antennas)

Ethernet interface

1 WAN/LAN 10/100Mbit/s adaptive, built-in 1.5KV electromagnetic isolation protection, default WAN, can be configured as LAN

4 LAN 10/100Mbit/s self-adaptive, built-in 1.5KV electromagnetic isolation protection

Indicator light

1xPWR Power Indicator

1xWi-Fi indicator

4xLAN Local Area Network indicator

1xWAN Wide Area Network indicator

1xNET IoT indicator

Power interface

Terminal power supply with built-in anti-reverse connection protection to avoid damage to the equipment by wrong positive and negative connections

Real-time clock

Built-in RTC, battery powered

Standard power supply

DC12V/1.5A, supports overload protection, reverse connection protection

Reset button

The Reset button can be used to restore the device's parameter configuration to the factory default values

Scope of electricity supply

+6~35VDC (DC Model)

Product size

LxWxH=137x100x25mm(without antenna and mountings)

Idle current

138mA@12VDC

Average current

150mA@12VDC

Peak current

800mA@12VDC

Max. power consumption

2.88W

Ambient temperature and humidity

Storage temperature: -40~85°C

Operating temperature: -30~75°C

Relative humidity: 5 ~ 95% (no condensing)

Weight

388 g

Housing

Metal housing design, protection level up to IP30

Mounting method

Wall-mounted or Rail-mounted (optional)

R9607 Series

R9607-FS

Specification name

Software specification

PPPoE certification

PAP/CHAP/MS-CHAP/MS-CHAPV2

Network Protocol

Support ARP,Ethernet LAN protocols

Support Static IP, DHCP, PPPoE protocols

VLAN

Support VLAN management

Network access

APN、VPDN

IP Application

Ping,Traceroute,DHCP Server/Client,DNSRelay,DynamicDNS,Telnet,SSH,HTTP,HTTPS,TFTP,FTP,SFTP,NAT

IP Routing

RIP, static routing

Link detection

TCP/Ping heartbeat detection supports for automatic disconnection and reconnection to ensure that the device is "always on"

Link backup

Link switching for cellular networks, Wi-Fi and wired Ethernet

Link backup

Supports self-recovery of equipment failures to ensure stable equipment operation

Qos

Upstream and downstream bandwidth limits

DTU

Built-in software DTU function

Firewall

Support NAT, PAT, DMZ port mapping, IP, port and MAC filtering

Network Security

Support for administrative user hierarchy: administrator, maintainer

Alarm events

System and application logs

WLAN

Supports IEEE 802.11n b/g/n

AP, Client working mode

System open, shared key, WPA/WPA2 authentication

WEP/TKIP/AES encryption

Portal access authentication

Timed task management

Support for setting timed reboots

SNMP

SNMP v1/v2

Traffic statistics

Real-time traffic, monthly traffic statistics, traffic limit setting

Management and maintenance

Web management support

Telnet and SSH terminals

System status monitoring

NTP client with support for network synchronisation of device system clocks

Support for import and export of configuration files

Support for local and remote firmware upgrades, saving manpower and resources

Network tools: Ping, Tracert

Support Utek Device Management Cloud, batch operation, centralized management
