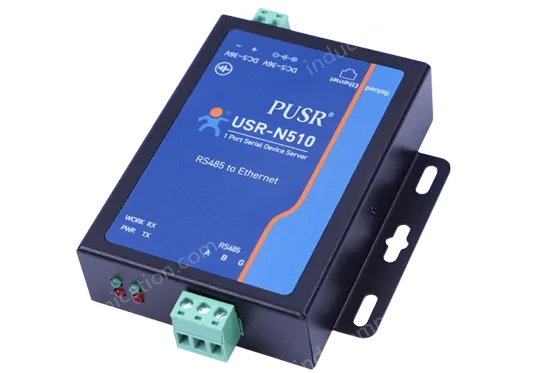

The USR-N510 single serial server is used to realize the two-way transparent transmission of data from serial port to Ethernet port. Users don't need to worry about the specific details, and the protocol conversion is done inside the server. The serial port side realizes the transparent transmission of serial port data, and the Ethernet port side is TCP/IP data packets, and the work details can be specified through simple settings, which can be carried out through the web page inside the server, or set by the setting software, and the settings are permanently saved at one time.1 port RS485 Ethernet device servers USR-N510-H7-4 can realize bi-directional transparent transmission between RS485 and network.Supports modbus RTU to TCP, Modbus Polling.
| System Information | |
| Processor | ST Cortex-M7 |
| Basic Frequency | 400MHz |
| Flash | 128K+4M byte |
| Ethernet | |
| Port Number | 1 |
| Interface Standard | 8 pin RJ45 |
| Rate | 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client |
| Receive Buffer | Max 16k bytes buffer |
| Serial | |
| Port Number | 1 |
| Interface Standard | RS-485: 2 wire (A+,B-) Half-Duplex |
| Data Bits | 7,8 |
| Stop Bit | 1,2 |
| Check Bit | Even,Odd |
| Baud Rate | 600bps ~ 921600Mbps |
| Flow Control | XON/XOFF |
| Buffer | Send and receive 4k bytes respectively |
| Protection | RS-485: anti-static 2KV,lightning protection |
| RS-485 Pull-up and Pull-Down Resistor | 2.2 KΩ |
| Software | |
| Virtual Serial（USR-VCOM） | Windows 2000 or higher(32 bit/64 bit) |
| Configuration | Built-in webpage, computer set-up software, serial command |
| Basic Parameter | |
| Size | 88 x 81 x 24 mm |
| Operating Temp. | -40 ~ 85°C (industry) |
| Storage Temp. | -40 ~ 85°C, 5 ~ 95% RH (no condensation) |
| Input Voltage | DC 5 ~ 36V |
| Working Current | 53mA @ 12V |
| Power | <1W |
| More | |
| Certificate | CE,FCC,ROHS |
| Warranty | 2 years |
