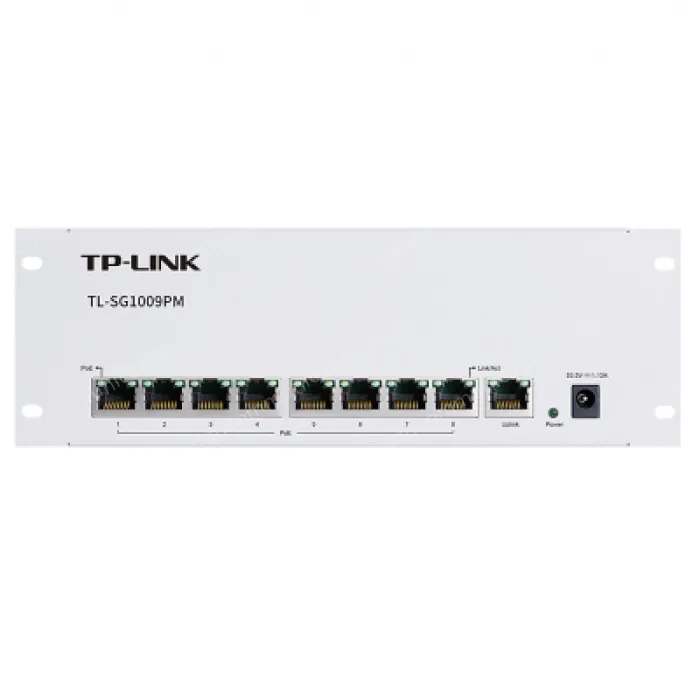

TP-LINK's newly developed PoE switching module includes 5/9 ports, 100 Gigabit/Gigabit products, supports IEEE 802.3af/at PoE power supply standard, is designed for home weak current box, easy to install, plug and play, and meets the needs of households for PoE power supply network.

• Provides 9 x 10/100/1000Mbps RJ45 ports
• RJ45 ports 1~8 support IEEE 802.3af/at PoE power supply standard
• The PoE power supply power of the whole machine is up to 54W, and the PoE power supply power of a single port is up to 30W
• PoE power delivery ports support the priority mechanism
• It is designed for family weak current box, and the size is 225mm*74mm*24mm
• The spacing between the transverse mounting screws is 213mm, and the spacing between the longitudinal mounting screws is 50mm

Rich port specifications

• PoE switching module series products provide multiple port combinations of 5FE, 9FE, 5GE, and 9GE.
• All ports support non-blocking wire-speed forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• Provide 4/8 PoE power supply ports to meet the needs of PoE power supply networks such as home visual security and wireless coverage.
• It complies with the IEEE 802.3af/at PoE power supply standard, and the maximum PoE output power of a single port is 30W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

Designed for weak current boxes

• Modular strip design, Mini body, perfect fit for the mainstream weak current box/information box on the market.
• The shell size is 225mm*74mm, the spacing between the transverse mounting screws is 213mm, and the spacing of the longitudinal mounting screws is 50mm.

The equipment is stable and reliable

• The low-power design of the host has good heat dissipation to ensure the stable operation of the product.
• It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.
• The equipment meets the national CCC standard, fully meets the safety requirements, and is safe and reliable to use.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act, PoE).
