TP-LINK's newly developed "Cloud Switching Series" monitoring PBX provides a more efficient, simple, secure and easy-to-use remote management mode, supporting functions such as intelligent deployment, automatic configuration networking, and abnormal alarms, which can be easily used by novices without the need for professional IT operation and maintenance personnel. Cost-effective 100 Gigabit downlink and Gigabit uplink ports support flexible 802.1Q VLAN, port monitoring, port aggregation, QoS, bandwidth control and other basic network management functions, which are easy to manage and maintain, and are suitable for campus, hotel, and enterprise campus network access application scenarios.

• 16 x 10/100 Base-T RJ45 ports (with standard PoE+ power supply)
• 2 x 10/100/1000 Base-T RJ45 ports
• The maximum PoE power supply power of the whole machine is 180W, and the maximum PoE power supply power of a single port is 30W
• Compliant with IEEE 802.3af/at PoE power supply standard, the port supports power supply priority
• Support remote management of business cloud APP and web
• It supports ERPS ring network protocol, RPL configuration, supports 5 ring networks, and convergence time ≤ 50ms
• It supports intelligent identification of monitoring terminals
• It supports intelligent deployment, abnormal alarms, and fast troubleshooting
• 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression are supported
• Supports port aggregation, port traffic statistics, port monitoring, cable detection, and loopback protection
• It supports three working modes: cloud management, VLAN isolation, and standard switching
• Support fast PoE and permanent PoE functions
• *Only version 3.0 and above of this model supports cloud management
• *Only version 3.0 and above support ERPS

Gigabit uplink port

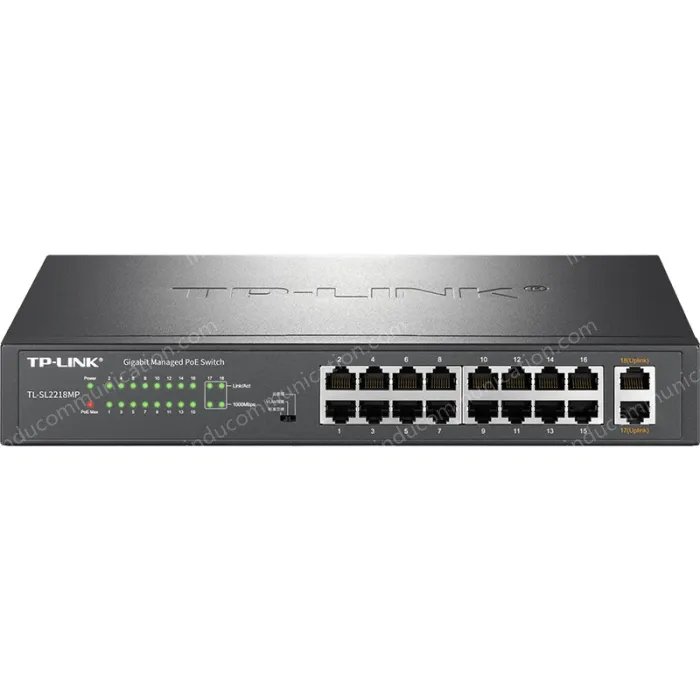

• The TL-SL2218MP offers 16 x 10/100Mbps RJ45 ports and 2 x 10/100/1000Mbps RJ45 ports.

• All uplink ports are capable of gigabit line-speed forwarding to meet the needs of different users.

It supports remote management on the APP side and the web side, and the whole process of operation is portable and encrypted

• Remote management through the TP-LINK business cloud APP, only one mobile phone is needed, no matter where you are, you can complete a variety of operations such as setup, management, troubleshooting, etc., which is easy and convenient.

• It provides TP-LINK commercial network cloud platform, and can also manage devices through the web client.

Scan the code to add devices with one click and automatically configure the networking

• Simplify the steps of adding devices, you only need to scan the QR code on the fuselage to add the switch, and automatically identify all devices connected to the switch.

• Scan the QR code once to achieve fast and intelligent start. The identified topology is displayed in a graphical way, which is clear and intuitive, and easy to understand.

View port status in real time and provide timely alarms for exceptions

• Real-time monitoring of the working status of each port and graphical display, simple interaction, clear at a glance.

• Timely alarms are given for abnormal status, and fault location is highlighted and visible at a glance, reducing the difficulty of troubleshooting and greatly improving O&M efficiency.

PoE port restart is supported, and the PoE terminal is downtime with one click

• When a PoE terminal goes down, you only need to remotely restart the PoE port corresponding to the terminal, which can easily solve the problem in one step, without the need for on-site hard restart, and get twice the result with half the effort.

It supports standard PoE power supply function

• TL-SL2218MP ports 1~16 support PoE+ power supply and follow the IEEE 802.3af/at standard to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.

• The maximum PoE power supply power of the TL-SL2218MP is 180W, and the maximum PoE power supply power of a single port is 30W.

Trunk ports converge, the uplink rate is doubled, and loops are automatically detected and eliminated

• Port aggregation is supported, which can provide higher uplink rates.

• Intelligent loop protection, which automatically detects the network topology and automatically repairs the loop immediately after it is found, effectively preventing network congestion and faults caused by network loops.

Simple and practical network management functions

• IEEE 802.1Q VLANs are supported, allowing users to flexibly divide VLANs according to their needs.

• It supports QoS and supports three priority modes: port-based, 802.1P-based, and DSCP-based, to optimize bandwidth configuration.

• Port monitoring is supported, and a copy of the data packets of the monitored port is copied to the monitored port to implement network monitoring.

• Port aggregation is supported, which effectively increases link bandwidth, implements link backup, and improves link reliability. The device can be managed and maintained through the web interface.

One-click to switch working modes

• Cloud management mode: The switch supports network management functions such as VLAN, port aggregation, and port monitoring, and can be managed and maintained through the commercial cloud app, commercial network cloud platform, and local interface.

• VLAN isolation mode: The switch does not support the NMS function, and some ports are isolated from each other.

• Standard switching mode: The switch does not support the NMS function, and all ports can communicate freely.
